Panther XTR - Extreme
Breaking All Limits
Unleash The Power With The Panther XTR – Extreme
At the heart of the Panther XTR beats the Arduino Atmega 2560 MegaPro, delivering full Speeduino firmware compatibility and bulletproof performance. The 56-pin Delphi SCIMA slide-lock connector ensures an uncompromising electrical connection, built to handle the harshest conditions without a flicker of instability.

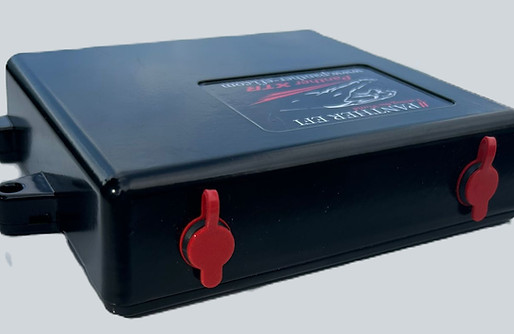

Dual USB ports keep you fully connected — one powers your digital dash, the other is your direct link for lightning-fast tuning and updates.
With EFI Analytics’ "TunerStudio" and "TS Dash", dialing in your setup is fast, intuitive, and powerful so you can spend less time configuring and more time dominating the road or track.
Compatible with engines up to 8 cylinders, featuring 4 fuel and 4 ignition channels. Delivers full sequential control for 2, 3, and 4 cylinder engines, and supports wasted-spark or semi-sequential modes for 6 and 8 cylinder even-fire engines.
Features
4 High Impedance Fuel Injector Outputs
4 Ignition Outputs Configurable for 5V or 12V Coils
3 Trigger Inputs for Hall Effect Crank and up to 2 Cam Sensors
(Variable Reluctor Option Available)
Pre-Configured Analog Sensor Inputs
Manifold Pressure
Intake Air Temperature
Throttle Position
Coolant Temp
8 Spare Analog Inputs
Boost/Fuel Level/Oil Temp/Oil Pressure/Trans Temp/Baro/Etc.
Other Inputs
O2 Sensor - Narrow or Wide Band
Points or HEI Distributors
VSS Input - Hall or Onboard VR Conditioner
Flex Fuel
Clutch
4 Spare Digital Inputs
Outputs
Tachometer Output
Fuel Pump Control
Cooling Fan Control
Launch Control
Boost Control
Single or Dual VVT Control
Idle Air Control
(IAC - 2 Wire, 3 Wire)
(Stepper Type with optional DRV8825 board)
7 Spare Digital Outputs
If you have a classic car with a distributor this ECU can also control a Throttle Body Injection system.
With all the spare inputs and outputs, the Panther ECU can also be used as a Digital Dash Controller using the dedicated USB port provided.
Spare Outputs can be configured to send a Ground Signal to control other accessories or events.
To place an order or for further information
Please use the contact button below
